Presscon
Degasser
Degasser - 4,800 to 6,000 liters
Presscon degassers are ideal for industrial water systems in horticulture, chemicals, petrochemicals and HVAC systems in buildings, where efficient energy consumption and low-maintenance solutions are essential. Vacuum control allows the water to be brought to the optimum vacuum, reducing the need for intensive cleaning processes and chemicals.
How does the Presscon Vacuum Degasser work?
The water enters the degasser, where it is collected in a tank and vacuumed using a pump to extract the oxygen from the water. The remaining oxygen is blown off via an air vent, while the oxygen-free water flows back into the installation.
The system is compact, easy to install and is equipped with an adjustable time program. The Degasser is tailor-made for your specific situation at our own development department and production location in the Netherlands.
Advantages Presscon Degasser
- Frequency control: The frequency controller adjusts based on the actual temperature, achieving the correct vacuum.
- Real-time monitoring: Through a user-friendly touch screen, technicians can track operational data in real time and quickly react to deviations. This saves time in optimization and maintenance.
- Industrial compactness: With its compact design and ease of maintenance, the Carbon Degasser can be used in a variety of industrial environments, from horticulture and chemicals to HVAC buildings.
- Environmentally friendly corrosion protection: The degasser operates effectively without chemicals, reducing environmental impact and minimizing the need for intensive cleaning processes.
Technical specifications
- Standard pump: capable of eventually removing up to 20 ppb of oxygen, ideal for all installations.
- Sustainability and efficiency: The design, constructed from durable materials, ensures long life, low energy consumption and minimal maintenance requirements.
PRODUCT PROPERTIES
PRESSCON DEGASSER
- Capacity: 4.8 m³/h
- System pressure: 1 bar(g)
- Vacuum: -900 mBar
- Voltage: 400V/50hz/3(Volt/HZ/PH)
- Connection In: 1" ball valve
- Connection Out: 1" ball valve
- Program: time adjustable
- Work principle: full-time
- Noise level: < 76 dB(A)
EXITOXY BASIC
- Capacity: 4.8 m³/h
- Frequency control
- Dimensions: 75x41x96 cm
- System pressure: 1 bar(g)
- Vacuum: -900 mBar
- Voltage: 400V/50hz/3(Volt/HZ/PH)
- Connection In: 1" ball valve
- Connection Out: 1" ball valve
- Program: time adjustable
- Work principle: full-time
- Noise level: < 76 dB(A)

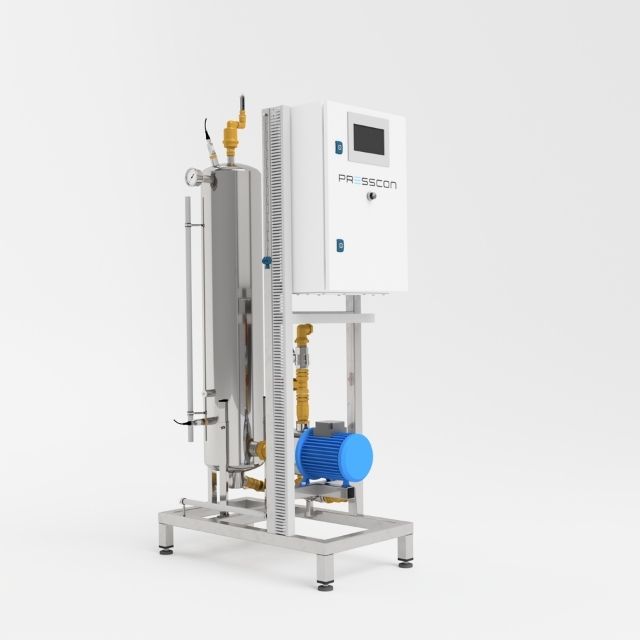

EXITOXY VSD
- Capacity: 6 m³/h
- Frequency control
- Integrated Partial Flow Filter
- Dimensions: 170x100x96 cm
- Voltage: 400V/50hz/3(Volt/HZ/PH)
- Connection In: 2" ball valve
- Connection Out: 2" ball valve
- Optimal inlet temperature: 3 - 90 ˚C
- Noise level: < 70 dB(A)
EXITOXY CARBON+
